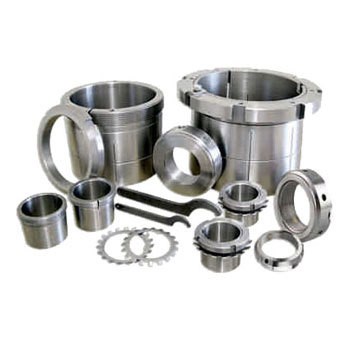

Adapter Sleeves, Withdrawal Sleeves, Locknuts and Lockwashers

Get Fastest Delivery / Get Best In Market Rates / 43+ Years Of Experience

Balaji Bearing India is a leading adapter sleeves manufacturer and supplier in India, offering a wide range of premium-quality bearings for various industrial applications. With a strong presence in Pune, Kolkata, Mumbai, Chennai, and across India, we are also recognized as a trusted bearing dealer, distributor, and exporter in Chennai, Mumbai, and India. Our extensive stock inventory enables us to provide quick delivery and reliable supply to industries nationwide. This ensures reduced machine downtime and improved operational efficiency for businesses across multiple sectors.

The four main components of a bearing mounting system are adapter sleeves, withdrawal sleeves, locknuts and lockwashers. These components are designed to interact seamlessly to allow bearings to be rapidly, accurately and securely mounted and withdrawn from cylindrical shafts without the need for expensive precision shaft seats - reducing installation and maintenance costs and complexity, both in new designs and in servicing.

1. Adapter Sleeves

Adapter sleeves are tapered, split-type inner ring assemblies that are used to mount self-aligning ball bearings and spherical roller bearings onto plain cylindrical shafts. The tightening of the locknut with wedge action causes the sleeve to contract onto the shaft, resulting in a strong interference fit that locks the bearing in place - no machining required.

The advantages of adapter sleeves are:

• Easy to fit on commercial shafting
• Versatile shaft design - bearing can be installed anywhere
• Available for a variety of shaft sizes
• Completely withdrawable and re-usable

2. Withdrawal Sleeves

Withdrawal sleeves are the opposite of adapter sleeves-they are used to safely and evenly withdraw bearings from tapered shaft seats without damaging the bearing or shaft. The withdrawal sleeve is pushed out from the back of the bearing, initially eliminating the interference fit and then allowing the bearing to be removed from the shaft damage free.

Withdrawal sleeves are particularly useful in:

• Large equipment where it is not possible to remove the shaft
• Inaccessible housing locations
• Where bearings require regular changing as part of maintenance

3. Locknuts (KM Nuts)

Locknuts-also known as KM nuts - are precision-machined nuts that mate with the threaded portion of the adapter sleeve or shaft. The locknut, once tightened with a hook spanner, pushes the bearing axially down the taper of the adapter sleeve and creates the proper interference fit, locking the bearing in place.

• Made from high-tensile strength carbon or alloy steel
• Threaded to ISO/DIN standards for proper clamping torque
• Used in conjunction with lockwashers

4. Lockwashers (MB Washers)

Locknuts-also known as KM nuts - are precision-machined nuts that mate with the threaded portion of the adapter sleeve or shaft. The locknut, once tightened with a hook spanner, pushes the bearing axially down the taper of the adapter sleeve and creates the proper interference fit, locking the bearing in place.

• Stops nuts spontaneously loosening under dynamic loads
• Bend-tab locking - no special tools needed
• Available in sizes to suit all standard KM locknut series

How They Work Together

When mounting bearings with adapter sleeves, the adapter sleeve is placed on the shaft first, followed by the bearing, lockwasher and locknut. The locknut is driven up the required distance creating the interference fit. After tightening, the lockwasher tab is then bent into the locknut slot. Withdrawal sleeves and withdrawal nuts are used to dismount the assembly in a controlled manner.

Industries That Use These Components

Adapter sleeves, withdrawal sleeves, locknuts and lockwashers are common throughout all industries:

• Bulk material handling, quarrying and mining
• Cement plants and construction equipment
• Paper and pulp manufacturing
• Steelworks and heavy engineering
• Farm and off-road equipment
• Food and beverage processing
• Fans, pumps and power transmission

Conclusion

Adapter sleeves, withdrawal sleeves, locknuts and lockwashers comprise a reliable bearing mounting solution that is used in every branch of heavy and medium industry. When properly specified and installed, these products will provide secure bearing mounting and installation, ease of maintenance and extended machinery life-all critical components in a well-designed rotating machinery assembly. Be sure to use components from an approved supplier to guarantee precise dimensions, quality materials and complete compatibility with your bearings specification.
