CLUTCH RELEASE BEARING
A Clutch Release Bearing is an important component of a manual transmission clutch system. It helps transfer the movement of the clutch release mechanism to the pressure plate when the clutch pedal is pressed. This allows the clutch to disengage so the driver can change gears smoothly.
A clutch release bearing is also commonly called a release bearing or throw-out bearing. The correct bearing depends on the vehicle, clutch assembly, bearing type, dimensions and required application.
What Is a Clutch Release Bearing?
A clutch release bearing is a bearing used in the clutch release mechanism of a manual transmission vehicle.
When the clutch pedal is pressed, the release mechanism moves the bearing toward the pressure plate. The bearing allows this movement while accommodating the relative motion between the clutch components.
Its primary purpose is to help disengage the clutch during gear changes.
Because different vehicles use different clutch designs, a release bearing should be selected according to the specific vehicle and clutch-system requirements rather than by name or appearance alone.
How Does a Clutch Release Bearing Work?
The operation of a clutch release bearing can be understood in a few simple steps:
-
1. The clutch pedal is pressed.
2. The clutch release mechanism moves toward the pressure plate.
3. The release bearing contacts the pressure plate.
4. The pressure plate releases its clamping force on the clutch disc.
5. The clutch disengages from the engine's power transmission.
6. The driver can change gears.
7. When the pedal is released, the clutch engages again.
The release bearing therefore plays an important role whenever the clutch is disengaged.
Why Is a Clutch Release Bearing Important?
The clutch release bearing works as part of the complete clutch assembly. Its condition and compatibility can affect clutch operation.
A suitable release bearing helps:
- Support smooth clutch disengagement
- Transfer movement from the release mechanism
- Accommodate relative movement between components
- Support normal clutch operation
- Allow the clutch to disengage during gear changes
However, clutch performance depends on several components working together, including the clutch disc, pressure plate, release mechanism and related parts.
What Are the Signs of a Bad Clutch Release Bearing?
A worn or damaged release bearing may produce noticeable symptoms.
-
1. Noise When Pressing the Clutch Pedal: A humming, whining or grinding sound that appears when the clutch pedal is pressed can indicate a possible release-bearing problem.
2. Noise Changes With Clutch Pedal Movement: If a noise appears or changes when the clutch pedal is pressed and released, the clutch release system should be inspected.
3. Vibration: Unusual vibration during clutch operation can be associated with the release bearing or other clutch components.
4. Rough Clutch Operation: A damaged bearing may contribute to less-smooth clutch operation.
5. Difficulty During Clutch Operation: Problems with the release bearing or other clutch components may make clutch engagement or disengagement feel abnormal.
Important: These symptoms are not exclusive to the release bearing. A damaged pressure plate, clutch disc, release mechanism or other component can produce similar symptoms. Proper inspection is recommended before replacing the bearing.
What Causes a Clutch Release Bearing to Fail?
A release bearing can develop problems for different reasons, including:
- Normal mechanical wear
- Incorrect fitment
- Contamination
- Damage to related clutch components
- Incorrect installation
- Excessive or abnormal operating conditions
- Problems within the clutch release mechanism
The actual cause should be identified before replacing the bearing.
When Should a Clutch Release Bearing Be Replaced?
There is no single replacement interval that applies to every vehicle.
Replacement may be required when the bearing shows signs of wear, produces abnormal noise, becomes damaged or is found to be unsuitable during clutch-system inspection.
In many clutch repairs, the release bearing is inspected or replaced along with other clutch components because access to the clutch assembly may require significant labour.
Always follow the vehicle manufacturer's recommendations and have the clutch system inspected by a qualified technician.
How to Choose the Right Clutch Release Bearing
Choosing the correct bearing is more important than simply selecting a bearing based on the vehicle name.
Before ordering, check:
- Vehicle Brand and Model: Confirm the exact make and model of the vehicle.
- Bearing Type: Determine whether the required component is a release bearing, pilot bearing or another clutch-related bearing.
- Bearing Number: Check the number or reference marking on the existing bearing whenever possible.
- Dimensions: Verify the required dimensions and compare them with the existing or specified bearing.
- Clutch Assembly: The bearing must be compatible with the pressure plate and release mechanism.
Clutch Release Bearing vs Pilot Bearing
A clutch release bearing and pilot bearing are not the same component. This distinction is important when selecting a replacement bearing.
| Feature | Clutch Release Bearing | Pilot Bearing |
|---|---|---|
| Main function | Helps disengage the clutch | Supports/locates the transmission input shaft |
| Position | Release mechanism and pressure plate area | Usually at the crankshaft/flywheel end |
| Role | Operates during clutch disengagement | Supports the rotating input shaft |
| Product type | Release | Pilot |
This distinction is important when selecting a replacement bearing.
Clutch Bearing Product Specifications

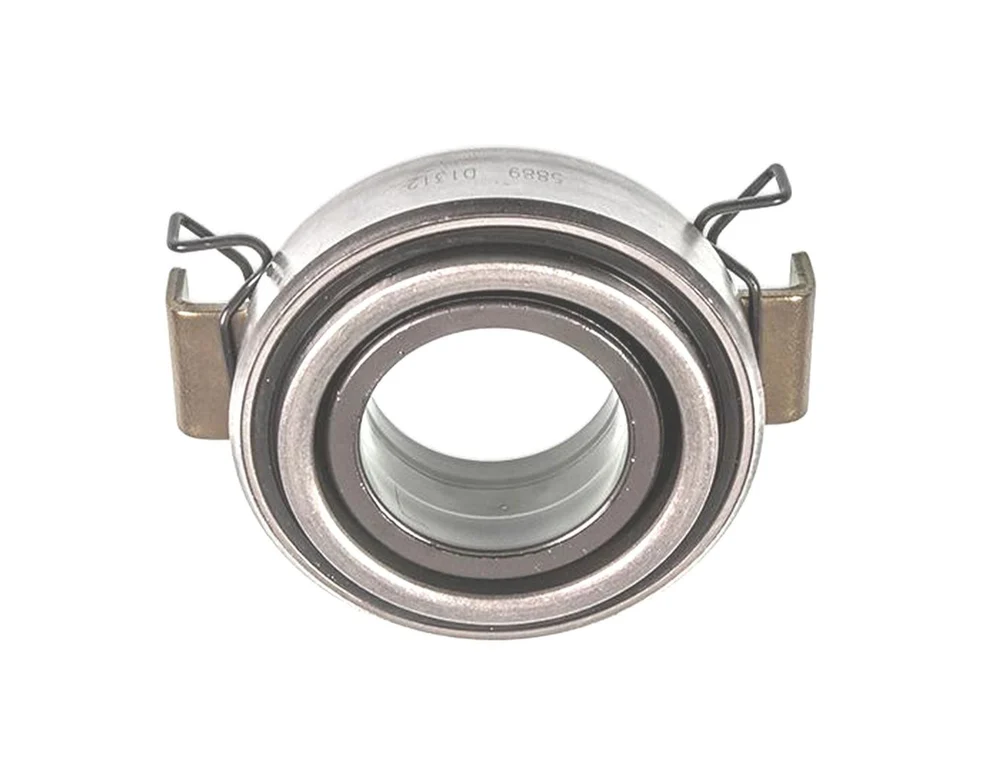

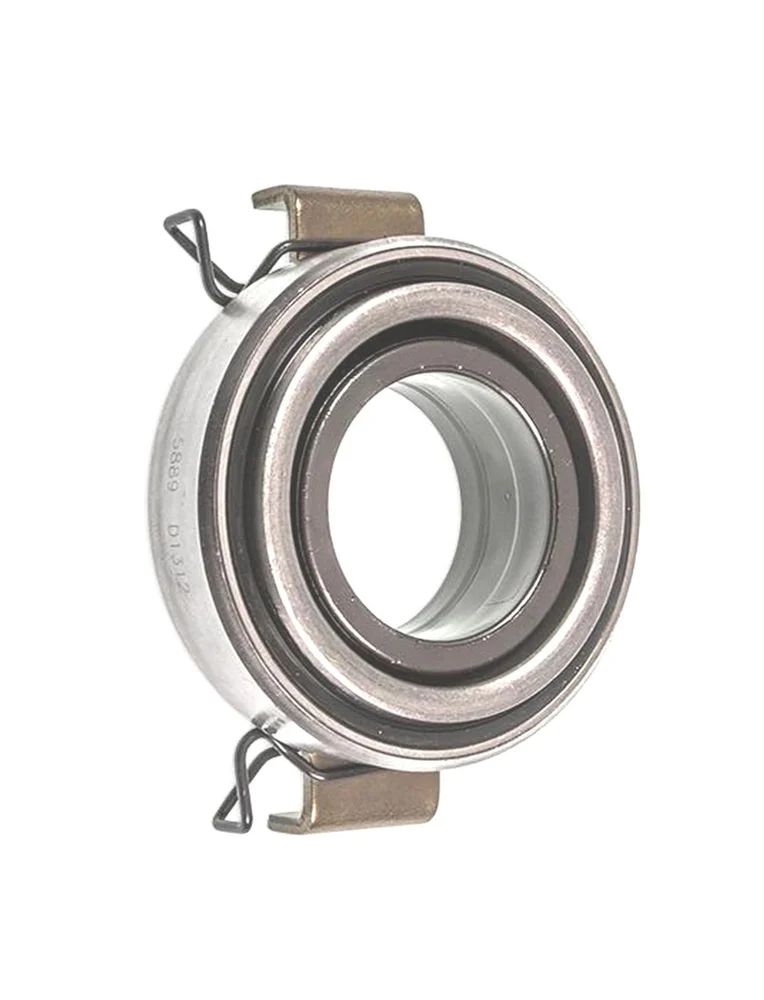

Car Clutch Bearing – Hyundai Santro
| Specification | Details |
|---|---|
| Bearing Type | Release |
| Vehicle Brand | Hyundai |
| Vehicle Model | Santro |
| Material | Stainless Steel |
| Size | 80 mm |
| Surface Finishing | Polished |
| Color | Silver |
Cars Clutch Bearing – Maruti Alto
| Specification | Details |
|---|---|
| Bearing Type | Pilot |
| Vehicle Brand | Maruti |
| Vehicle Model | Alto |
| Material | Stainless Steel |
| Surface Finishing | Polished |
| Color | Silver |
Note: Product specifications and vehicle compatibility should be verified before ordering. The above details are based on the referenced Balaji Bearing product listing.
How to Check a Clutch Release Bearing Problem
If you suspect a release-bearing issue, pay attention to how the sound or clutch behaviour changes when operating the pedal.
A basic observation can include:
-
1. Listen for unusual noise with the clutch pedal released.
2. Press the clutch pedal and note whether the sound changes.
3. Check for unusual vibration.
4. Observe whether clutch operation feels rough or abnormal.
5. Have the clutch assembly inspected if symptoms continue.
A proper mechanical inspection is necessary to confirm whether the release bearing is actually the source of the problem.
How Can You Prevent Clutch Bearing Problems?
Good driving and correct maintenance can help reduce unnecessary stress on clutch components.
Consider these practices:
- Avoid keeping unnecessary pressure on the clutch pedal.
- Use the clutch correctly during gear changes.
- Do not ignore unusual clutch noise.
- Use the correct bearing for the vehicle and clutch assembly.
- Ensure proper installation.
- Inspect related clutch components when replacing a worn bearing.
Clutch Release Bearing Applications
Clutch release bearings are used in manual transmission clutch systems across different automotive applications.
Depending on the specific bearing design and specification, applications may include:
- Passenger cars
- Commercial vehicles
- Trucks and buses
- Agricultural vehicles and equipment
- Other manual-transmission applications
Actual compatibility depends on the specific bearing and vehicle application.
Clutch Release Bearing Price and Cost
The price of a clutch release bearing can vary depending on factors such as:
- Bearing type
- Vehicle application
- Bearing size
- Brand or manufacturer
- Product specification
- Availability
Instead of selecting a bearing only by the lowest price, verify the correct bearing type, dimensions and vehicle compatibility first.
For the latest price and availability, contact Balaji Bearing with your required vehicle or bearing details.
Frequently Asked Questions
A clutch release bearing is a component of a manual clutch system that helps transfer movement from the clutch release mechanism to the pressure plate, allowing the clutch to disengage.
Yes. Throw-out bearing is a commonly used term for a clutch release bearing.
When the clutch pedal is pressed, the release mechanism moves the bearing against the pressure plate. This helps disengage the clutch and allows the driver to change gears.
Common symptoms can include unusual noise when pressing the clutch pedal, vibration and rough clutch operation. Other clutch components can cause similar symptoms, so inspection is recommended.
Noise can result from wear, contamination, incorrect installation, damage or problems with related clutch components. The complete clutch system should be inspected to identify the actual cause.
It should be replaced when inspection shows excessive wear, damage or abnormal operation. There is no universal mileage interval that applies to every vehicle.
No. A pilot bearing supports the transmission input shaft, while a clutch release bearing helps disengage the clutch.
Check the vehicle make and model, bearing type, bearing number, dimensions, clutch assembly and OE/reference number where available.
The cost depends on the bearing type, vehicle application, specification, brand and availability. Contact Balaji Bearing for current pricing and availability.
A noisy bearing should not be ignored. Continued operation may lead to further clutch-system problems. Have the vehicle inspected to determine the cause of the noise.
