Plummer Block Bearing

Get Fastest Delivery / Get Best In Market Rates / 43+ Years Of Experience

Balaji Bearing India is a leading Plummer Block Bearing manufacturer and supplier in India, offering a wide range of premium-quality bearings for various industrial applications. With a strong presence in Pune, Kolkata, Mumbai, Chennai, and across India, we are also recognized as a trusted bearing dealer, distributor, and exporter in Chennai, Mumbai, and India. Our extensive stock inventory enables us to provide quick delivery and reliable supply to industries nationwide. This ensures reduced machine downtime and improved operational efficiency for businesses across multiple sectors.

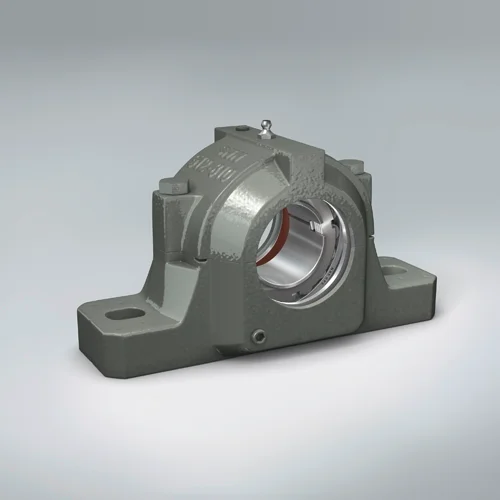

A Plummer Block Bearing - also known as a Pillow Block Bearing - is a bearing unit with a housing that integrates a bearing insert and a robust casing into a preassembled unit. They are designed to hold a rotating shaft in place at a specific point, while withstanding radial and axial loads, and they are built to last, be easy to install and have a long lifespan in harsh environments.

What Is a Plummer Block Bearing?

Plummer Block Bearing is a bearing housing unit that is mounted directly to a flat machine bed or structure and raises the shaft above the mounting surface. The housing is usually made of cast iron, spheroidal graphite (SG) iron or fabricated steel, offering a protective shell that shields the bearing insert from external dirt, debris and damage.

The bearing insert, typically a self-aligning ball bearing or spherical roller bearing, is located inside the housing and allows for angular misalignment of the shaft, making the Plummer Block Bearing a perfect fit for applications where the shaft cannot always be aligned perfectly during assembly or during use.

Key Components of a Plummer Block Bearing

• Housing (Block): Cast iron or steel frame that holds the bearing insert, bolted to the main machine frame.
• Bearing Insert: Self-aligning ball bearing or spherical roller bearing mounted within the housing, supports the shaft loads.
• Seals & Shields: Shield the bearing against dust, water and other contaminants to allow longer re-lubrication cycles.
• Locking Device: Set screws, eccentric locking collars or adapter sleeves firmly lock the inner ring to the shaft.
• Lubrication Point: Grease nipples or oil ports in the housing for re-lubrication without removing the bearing.

Types of Plummer Block Bearings

Plummer Block Bearings come in various designs to accommodate varying loads, shaft sizes and operating conditions. The most common types include:

1. SN Series Plummer Block Bearing

The SN series is the most common standard plummer block bearing, which is used with self-aligning ball bearings and spherical roller bearings on adapter sleeves. The SN series is available in a broad range of shaft sizes and is the preferred solution for many industrial applications such as fans, conveyors, pumps and compressors.

2. SNL Series Plummer Block Bearing

The SNL series is a modified variant of the SN housing, with upgraded seals, grease retention and contamination protection. SNL housings are typically installed with V-ring seals and labyrinth seals, and are commonly used in harsh conditions with excessive dust, water, or chemicals.

3. SAF / SAW Series Plummer Block Bearing

SAF and SAW series housings are robust plummer blocks for large shaft sizes and heavy loads. The housings are made from heavy-duty cast iron and designed for very high radial and axial loads, and are commonly used in mining, cement, steel and paper mills.

4. Split Plummer Block Bearing

The split housing construction allows the top cover to be removed without disturbing the shaft, facilitating easy inspection, lubrication and bearing change. This greatly speeds up maintenance on heavy industrial equipment where it is difficult to remove the shaft.

5. Stainless Steel Plummer Block Bearing

Stainless steel housings offer enhanced corrosion resistance to rust, chemical exposure and high pressure washes for critical hygiene and corrosive applications. Commonly found in food, dairy, pharmaceutical and marine environments.

Plummer Block Bearings Industries & Applications

The Plummer Block Bearing is an essential part of almost every heavy and medium duty industry. Here are the key industries in which these bearings play a crucial role:

• Mining & Minerals: Crusher, screening and conveyors, bucket elevators subject to high loads and shock loads.
• Cement & Construction: Kiln drives, ball mills, separators and material handling conveyors that demand high capacity and longevity.
• Paper & Pulp: Paper roll support, calender stacks, and dryer sections requiring very precise shaft support, and resistance to contamination.
• Food & Beverage: Stainless steel plummer block bearings in conveyors, mixers, fillers, etc. that require washdown and easy cleaning.
• Steel & Heavy Engineering: Roll mill drives, pinion stands and continuous casting plants with highest load capacities.
• Sugar & Agro Processing: Cane crushers, juice extractors, and conveyor drives in high temperature and moisture conditions.
• Textile Machines: Spinning mills, looms and winders requiring stable, vibration-free shaft supports for high-quality textiles.
• Energy & Utilities: Turbine shafts, cooling tower fans and pump drives needing high reliability, low maintenance bearing supports.

The Advantages of a Plummer Block Bearing

There are several benefits to using a Plummer Block Bearing in lieu of loose bearing mounting. Here's why housed bearing units are preferred by engineers:

• Self-Aligning Feature: Accommodates shaft deflection and misalignment, relieving the bearing of unnecessary loads and prolonging its life.
• Simpler Installation: Pre-mounted units simplify installation and eliminate the need for high skill levels common in open bearing mounting.
• Easy Maintenance: Lubrication ports and split housings enable re-greasing and bearing replacement without removing the shaft.
• Enhanced Protection from Contamination Integrated seals and labyrinths prevent dust, water and process media from entering bearings and causing damage.
• Flexible Load Bearing Capability: Configurations are available for light, medium and heavy radial loads, as well as combined axial-radial loads.
• Various Sizes: Plummer block housing sizes range from 20 mm shaft diameter to several hundred millimetres for heavy industrial applications.
• Easy Replacement: Bearing inserts can be replaced without needing to replace the housing, providing cost savings over the lifespan of the asset.

How to Choose the Right Plummer Block Bearings

When choosing the right Plummer Block Bearing for your application, consider the following key points for achieving the best performance, durability and cost-effectiveness:

• Shaft Size & Speed: Ensure the housing bore matches your shaft diameter and check the bearing's speed rating matches your shaft RPM.
• Load Type & Magnitude: Assess whether the application is primarily radial, axial or a combination and choose the appropriate bearing insert.
• Environmental Conditions: Assess temperature, humidity, dust and chemical exposure. Use sealed, stainless or labyrinth-protected housings in extreme conditions.
• Attaching Method: Verify if you require a standard two-bolt mounting base, four-bolt flange mounting or take-up unit depending on machine requirements.
• Lubrication Type: Choose between grease or oil-lubricated plummer blocks depending on your maintenance practices and operating temperatures.
• Manufacturer & Standard: Always purchase from reliable manufacturers and adhere to dimensional standards (ISO, DIN) to ensure compatibility and quality.

Conclusion

A Plummer Block Bearing is far more than a simple shaft support - it is a precision-engineered assembly that directly determines the reliability, efficiency, and uptime of the machinery it serves. From heavy-load mining conveyors to hygienic food processing lines, the right Plummer Block Bearing ensures smooth operation, reduced maintenance intervals, and a long, productive service life.

Understanding the different types, selection criteria, and application requirements of the Plummer Block Bearing empowers engineers and procurement teams to make informed decisions that reduce total cost of ownership and prevent costly unplanned downtime. Always source from reputable bearing manufacturers or authorised distributors to ensure dimensional accuracy, consistent quality, and reliable technical support.
